RC / Grade Control
About this rig

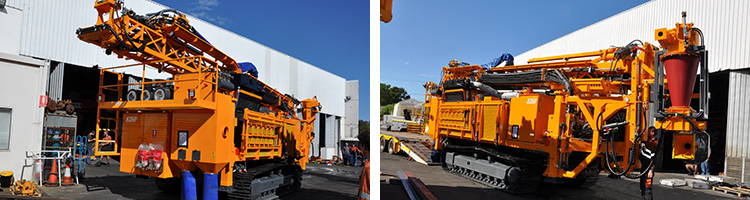

A compact shallow RC and Grade Control rig with a small footprint, mounted on Caterpillar 325 tracks with an onboard high-pressure compressor. X350 is suitable for 150 m RC drilling where minimal site clearing or limited access is required. The self-contained design includes a side-loading rod bin holding 25 × 6 m, 4.5-inch rods and a KL rod handler for added safety. This can be switched with a 48 m (8 × 6 m) rod carrousel for in-pit Grade Control. The rig is fitted with a dust suppression/cone sampling system and a high-pressure onboard Sullair 500 psi/1150 cfm compressor.
Specification
- Mount
- Track (Caterpillar 325)
- In fleet
- 2
- RC
- 150 m
- Grade control
- 48 m
